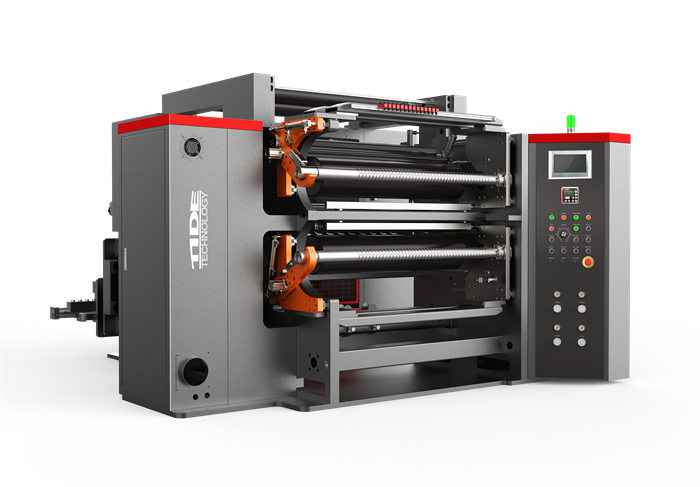

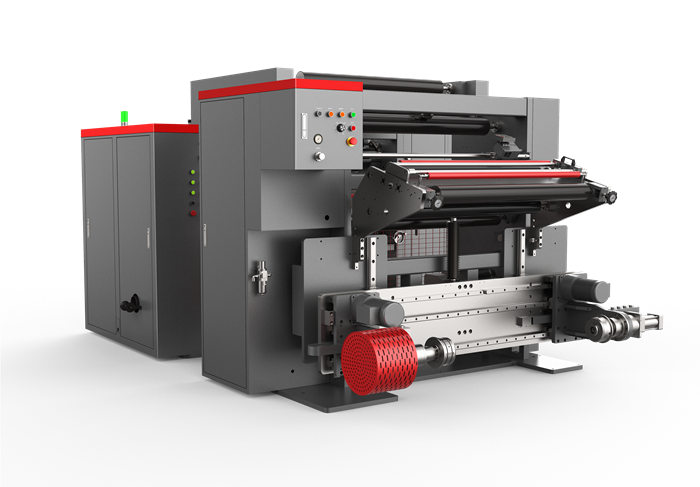

DS400 Digital Control Hi-speed Slitter

CHARACTERISTICS

· Slitting for very shin or soft tension material(like capacitance film/battery diaphagm/battery aluminum soft film/aluminum foil)
· Reel loading automatically
· Unwinding width adjusting automatically
· Servo driving system
· Razor knife slitting

· Splicing table with nip bars to fix the material
· Separated tension control system
· Air shafts for rewinding
· Marking the rewinding core position by laser
· Self diagnosis
· Maintenance information on touch screen
· Remote diagnosis and services

TECHNICAL DATA

	Standard	Option
· width of working face:	1050mm	1350mm
· Diameter of unwinding:	φ800mm	φ1000mm
· Thickness of material:	2μm-15μm	50μm-200μm
· Diameter of rewinding:	φ400mm	φ600mm
· Width of rewinding:	5mm(min)	--
· Working speed:	400m/min(max)	500m/min(max)

OPTION

* Expander roller
* Wave slitting mode for special material
* Unloading the finished rolls automatically
* Air friction shafts rewinding

* Circle knife slitting mode
* 6 inch rewinding mode
* Link to ERP
