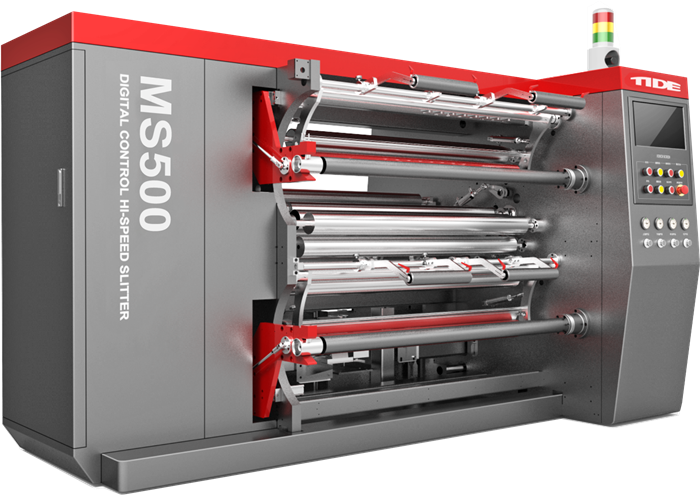

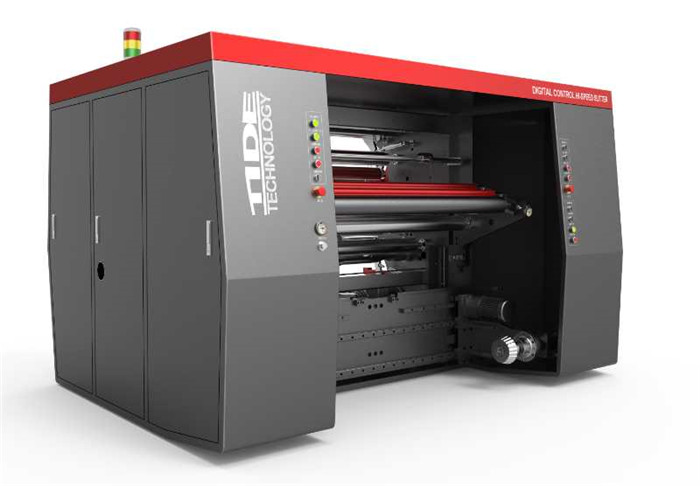

MS500 Digital Control Hi-speed Slitter

CHARACTERISTICS

· Slitting for film, paper or laminated material
· Unwinding width adjusting manually
· Servo driving system
· Razor knife slitting
· Air friction shafts for rewinding
· Unloading the finished rolls manually
· Maintenance information on touch screen

· Splicing table with nip bars to fix the material
· Separated tension control system
· Center rewinding mode
· Marking the rewinding core position by laser
· Self diagnosis
· Remote diagnosis and services

TECHNICAL DATA

	Standard	Option
· width of working face:	1300mm	1800mm(max)
· Diameter of unwinding:	φ800mm(max)	φ1200mm(max)
· Thickness of material:	12μm-150μm	more than 150μm
· Diameter of rewinding:	φ600mm(max)	--
· Width of rewinding:	50mm(min)	10mm(min)
· Working speed:	500m/min(max)	600m/min(max)

OPTION

* Unwinding width adjusting automatically
* Dancing roller
* Easy tear on line
* Stop by pictures accounting
* 6 inch rewinding mode
* Unwinding rool loading sami-automatically
* Other width on request

* Expander roller
* Circle knife slitting mode
* Air hole on line
* Gap roller rewinding mode
* Unloading the finished rolls automatically
* Link to ERP
